How to Use the Extraction Function on the SuckR PRO

Kit sold separately

The extraction function of your bigboi SuckR PRO transforms your vacuum into a powerful deep-cleaning machine — perfect for interiors, fabric, upholstery, and carpets. This function is only available when paired with the Extraction Kit, sold separately.

Follow the steps below to get started:

What You’ll Need:

• bigboi Extraction Kit (includes detergent tank, extraction tool, and connection hose)

• Water and cleaning solution (bigboi recommends a low-foaming carpet or upholstery cleaner)

Step-by-Step Instructions

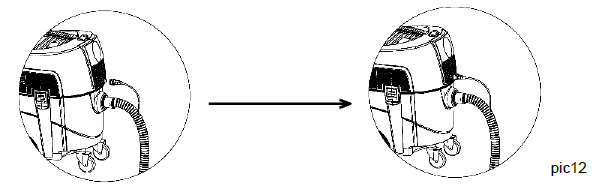

1. Remove the Vacuum Hose

Disconnect the standard vacuum hose from the unit.
(See Pic.12)

2. Connect the Extractor Hose and Tool

Attach the extractor hose in its place and fit the appropriate spray brush or spray crevice tool.

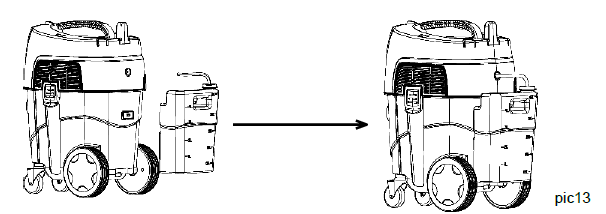

3. Install the Water Tank

Place the water tank onto the unit as shown.
(See Pic.13)

4. Power On the Unit

Plug the power cord into a socket and switch on the unit using the power button.
(See Pic.1)

First-Time Setup: Code Matching the Remote

This step is only required the first time you use the Extraction Kit.

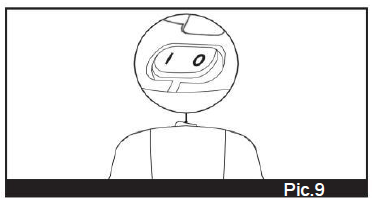

1. Turn the switch to the ‘I’ position to start the SuckR PRO.
   (See Pic.9)

2. Press the setting button (S) on the control panel twice.
   (See Pic.11)

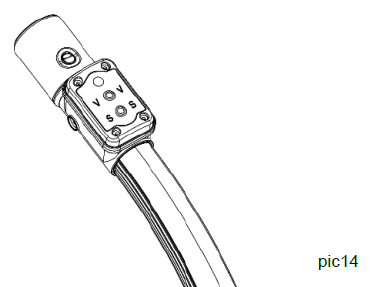

3. Press either the “V” or “S” button on the remote to begin the pairing.
   (See Pic.14)

4. The unit will stop temporarily to match. Wait ~10 seconds.

5. Restart the unit by switching to ‘O’, then back to ‘I’.
   (See Pic.9 again)

Operation Controls

Start/Stop Vacuum Function

Press the “V” button on the remote to start or stop vacuuming.
(See Pic.14)

Start/Stop Water Spray

Press the “S” button on the remote to activate the spray pump.
Press “S” again to stop the water spray.
(See Pic.14)

Turning Off the Unit

Switch the main power to ‘O’ when finished.
(See Pic.9)

Need Help?

If you experience any issues, visit our Help Centre or contact the bigboi support team for assistance.
